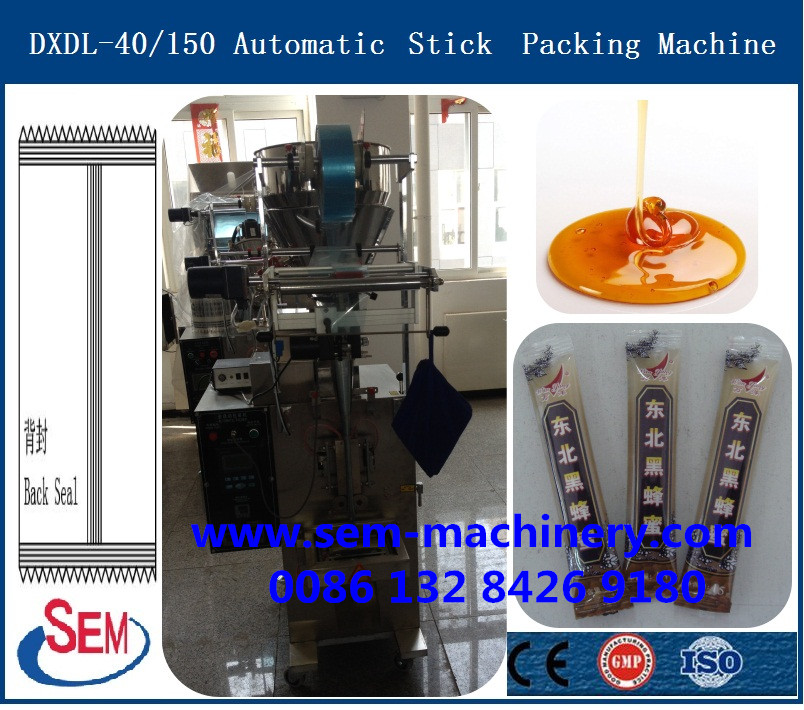

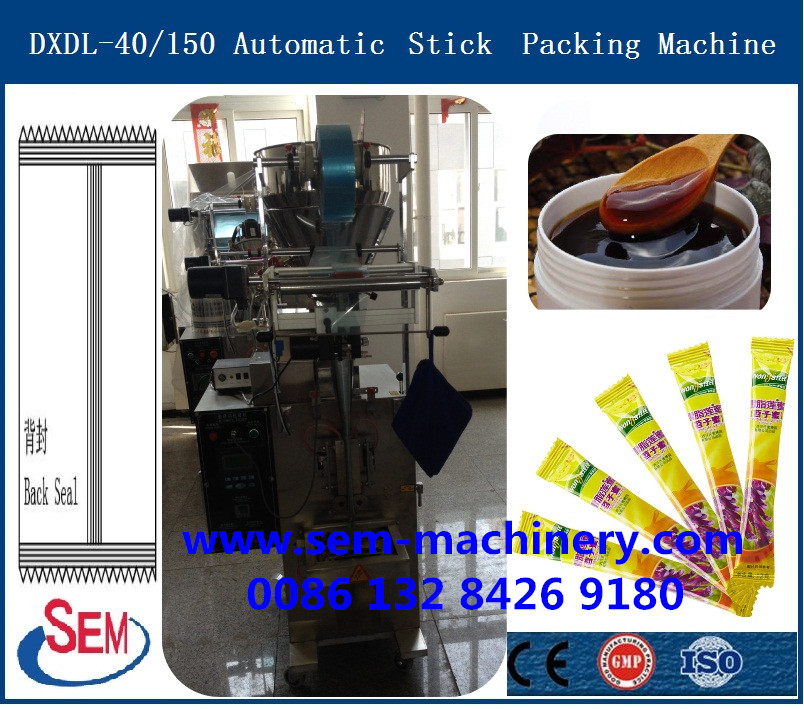

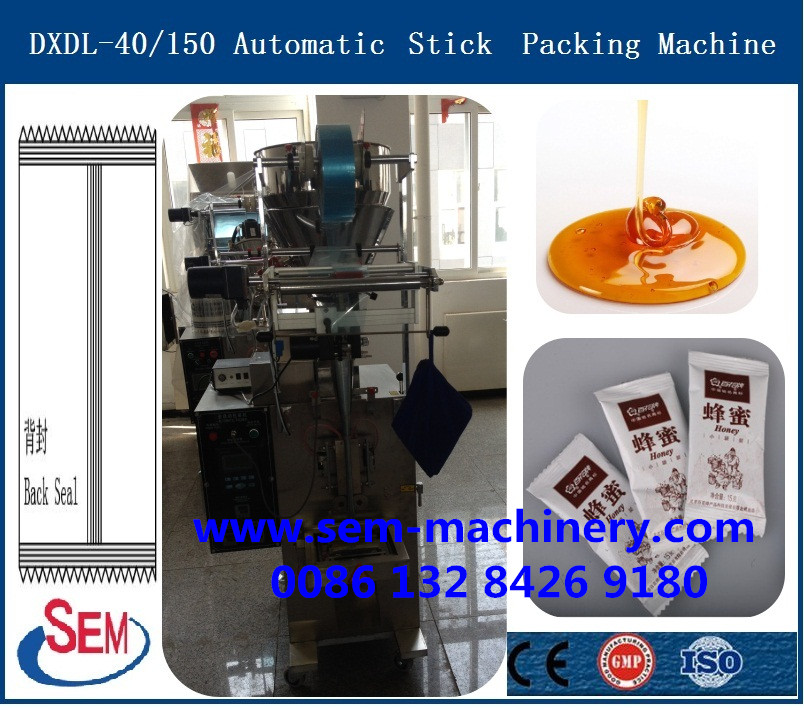

sachet stick packing machine
Application.

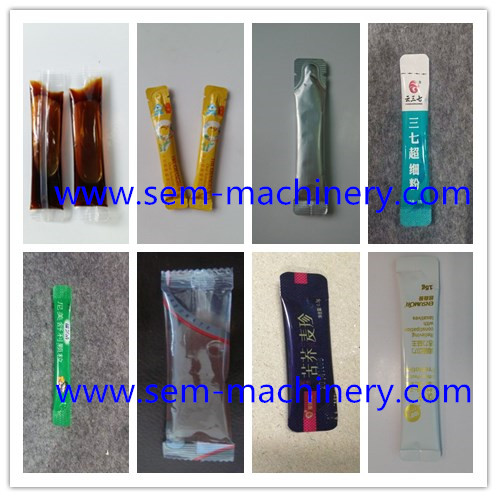

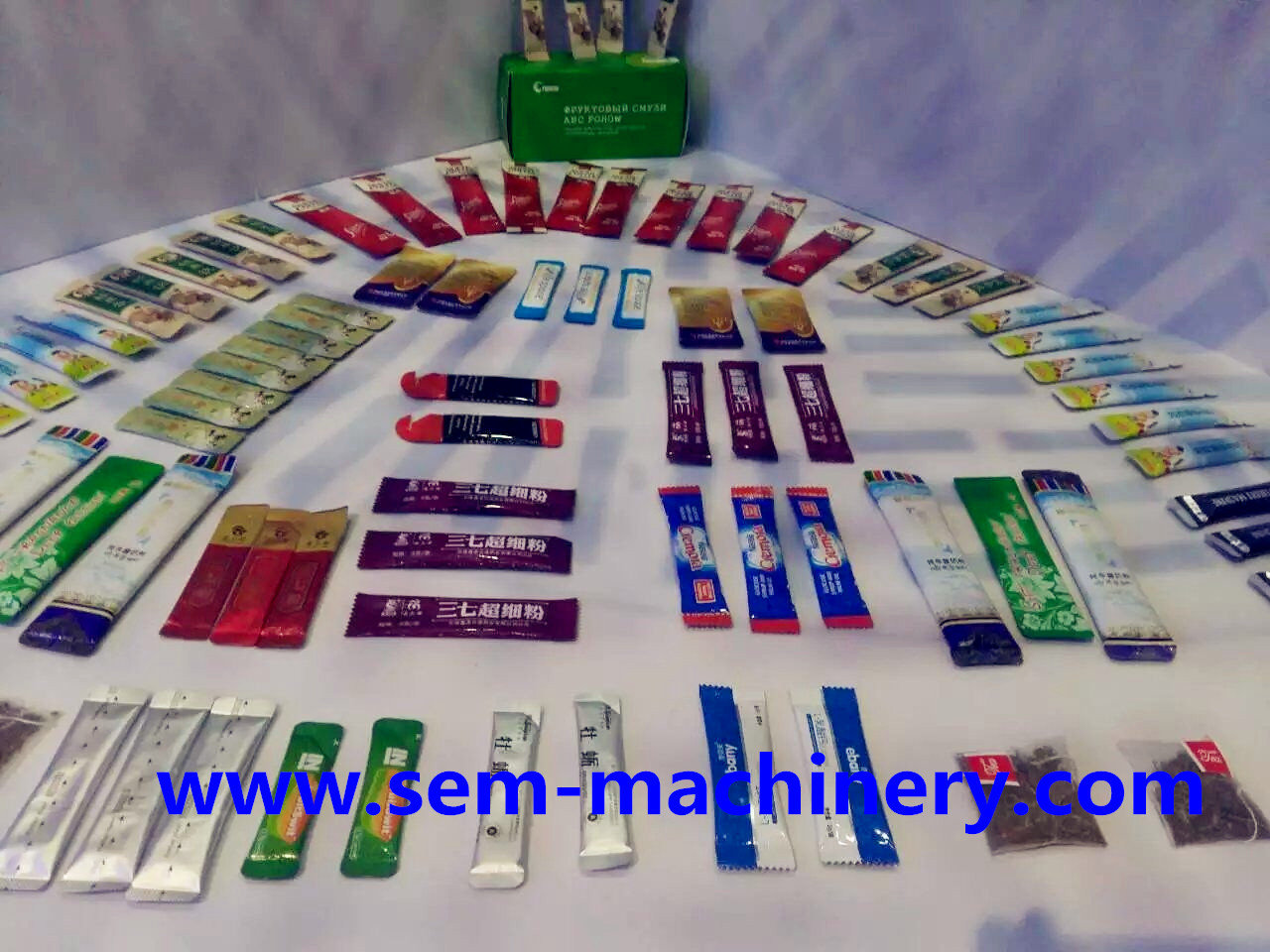

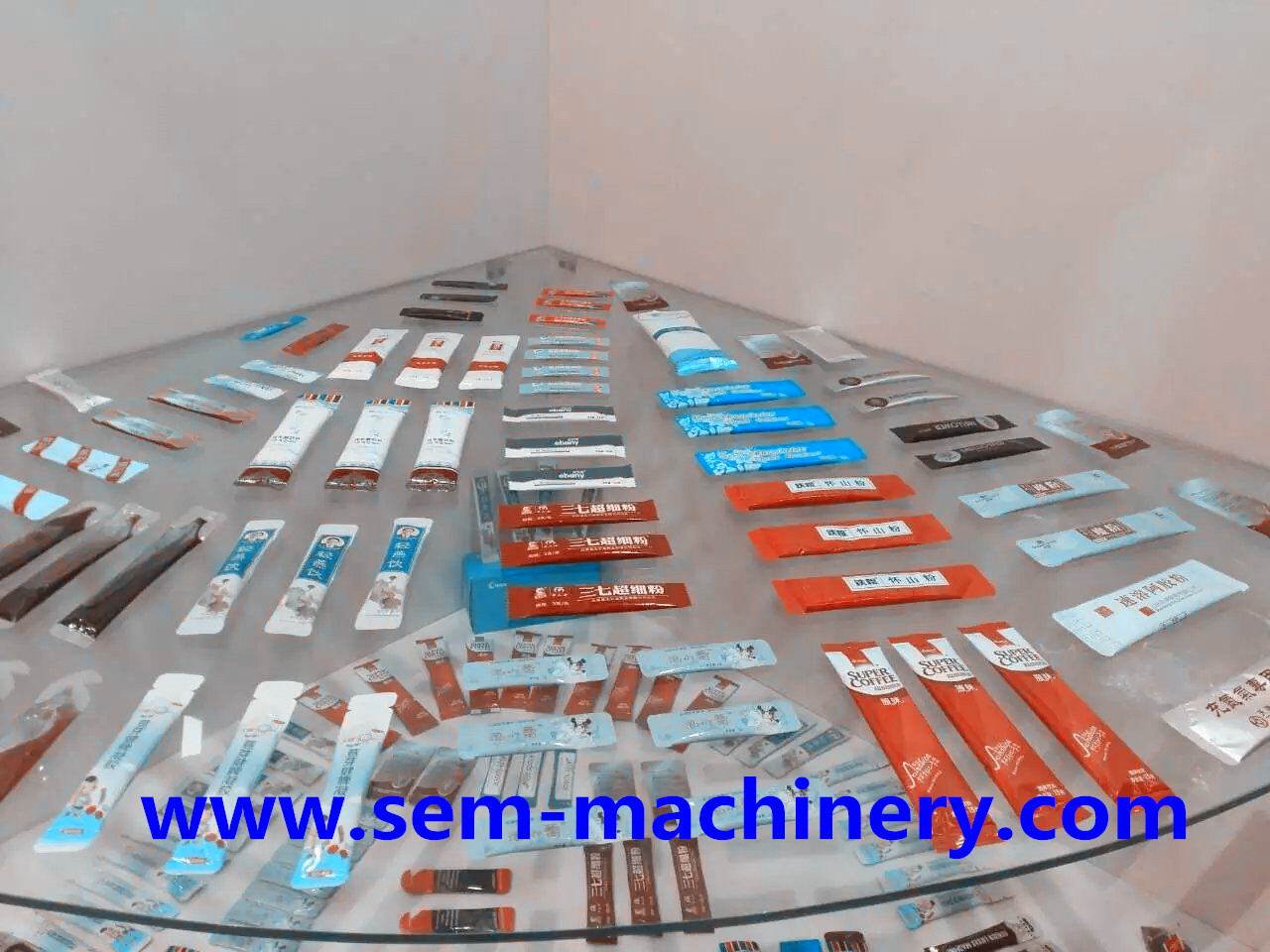

This machine is applicable for automatically packaging of viscous products with free-flowing cream such as honey, butter, peanut sauce ,cheese ,chocolate cream etc. The integrated processes of bag making, measuring filling, sealing , cutting , hot pressing codes can be done automatically ,.The packing film include several heat-seal lamination such as PET/PLATED ALU/PE,PET/PE,NYLON etc.
TYPE | DXDL-40- |
Packing material | OPP/CPP,OPP/CE,PEER/PE And other composite materials |
Bag length | 30-150mm(L) （each lane） |
Bag width | 30-55mm(W)（each lane） |
Max width of roll film | 220mm（double lane） |
Packing speed | 30-35 bag/min（each lane） |
Measuring range | 1-20 ML （each lane） |
Air consumption | 0.6mpa |
Gas consumption | 0.3㎡/min |
Power voltage | 220V/380V |
Power | 1.2 KW |
Dimension | (L)850mm×(w)700mm×(H)1600mm |
Deadwight of machine | 300kg |
