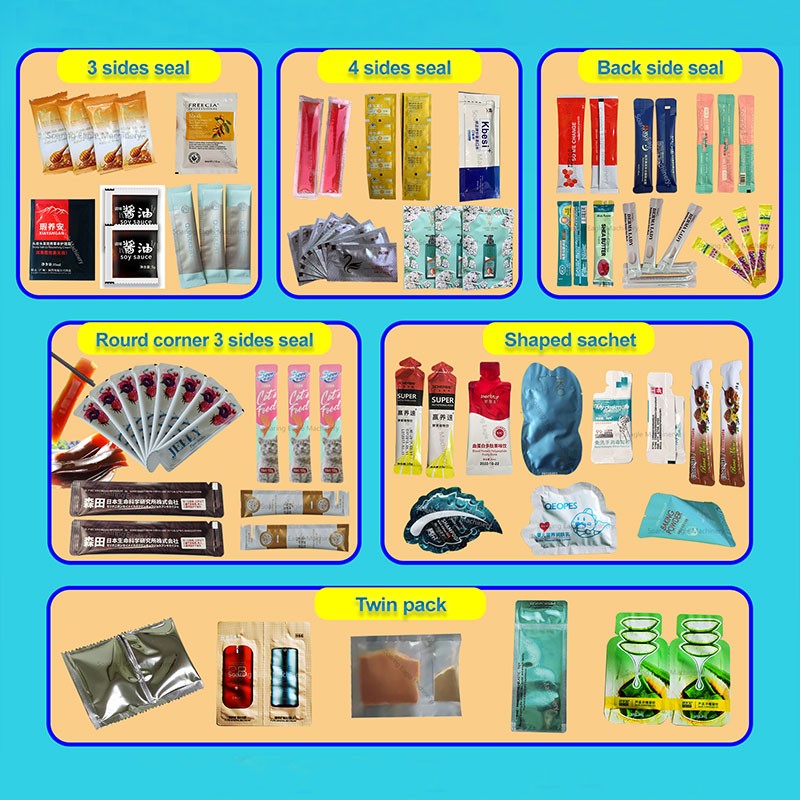

According to customer requirements to design the sachet shape and size .

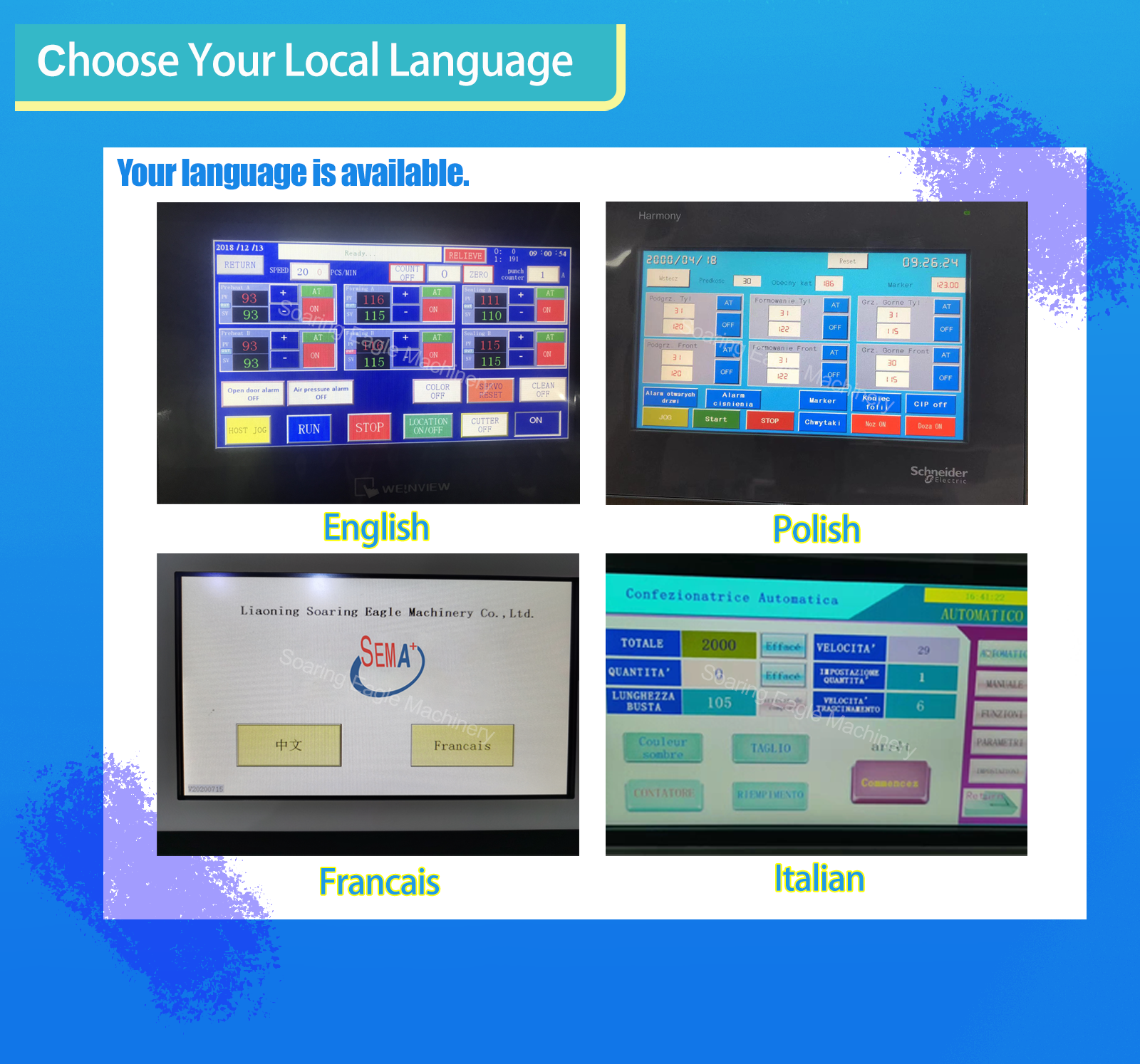

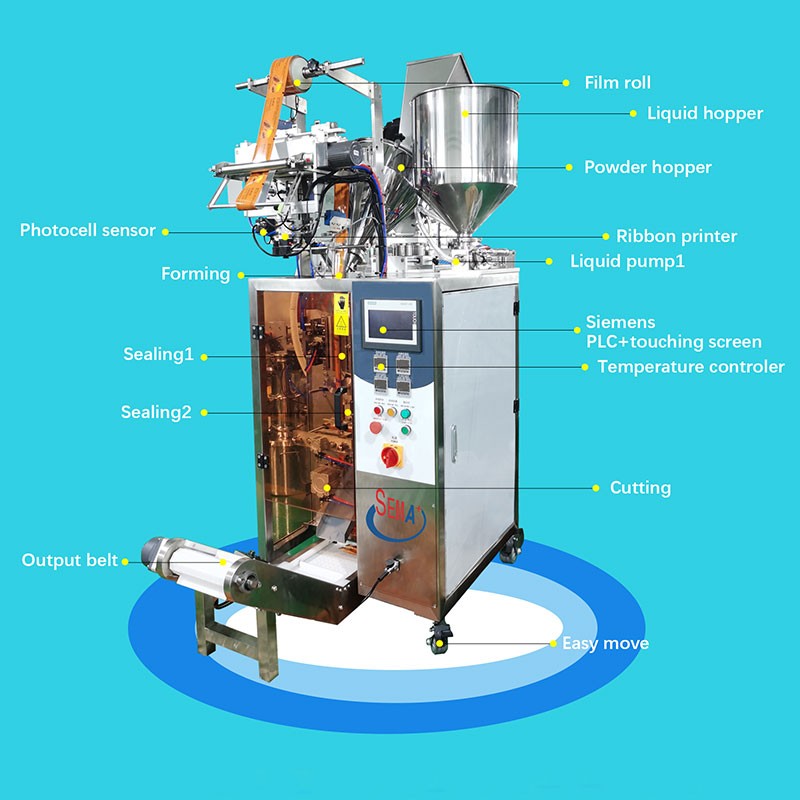

PLC touching screen English operation , it also could according to requirements to make different countries language on the touching screen .
With ribbon printer for date or batch No.

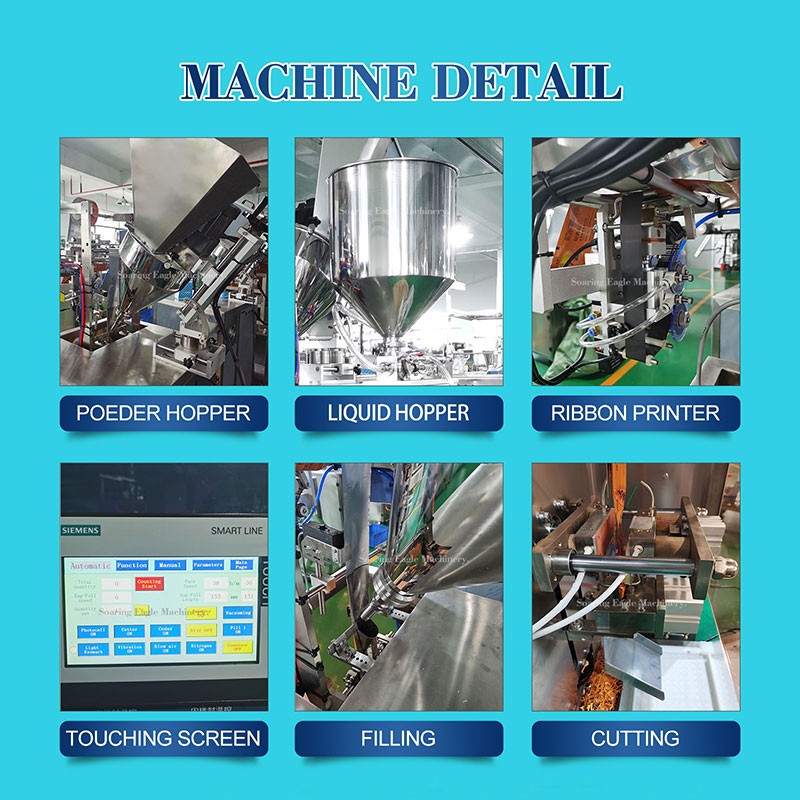

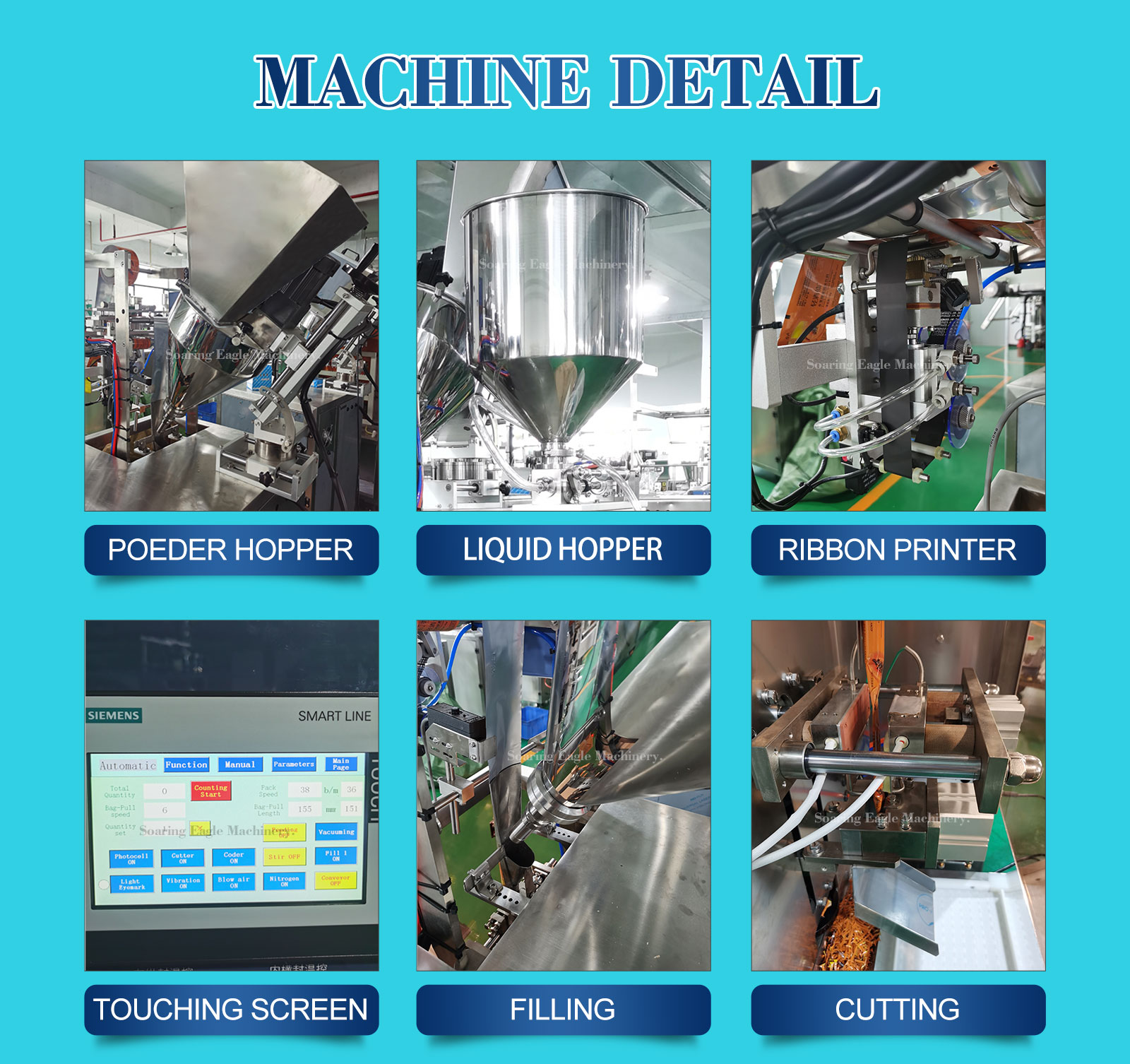

Different product will use different hopper and different feeders .

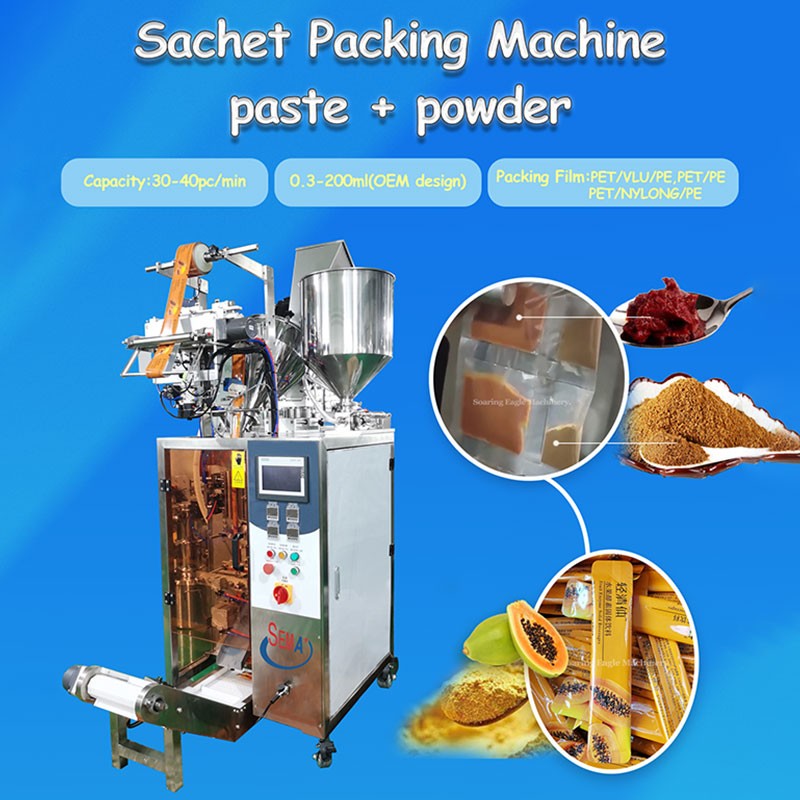

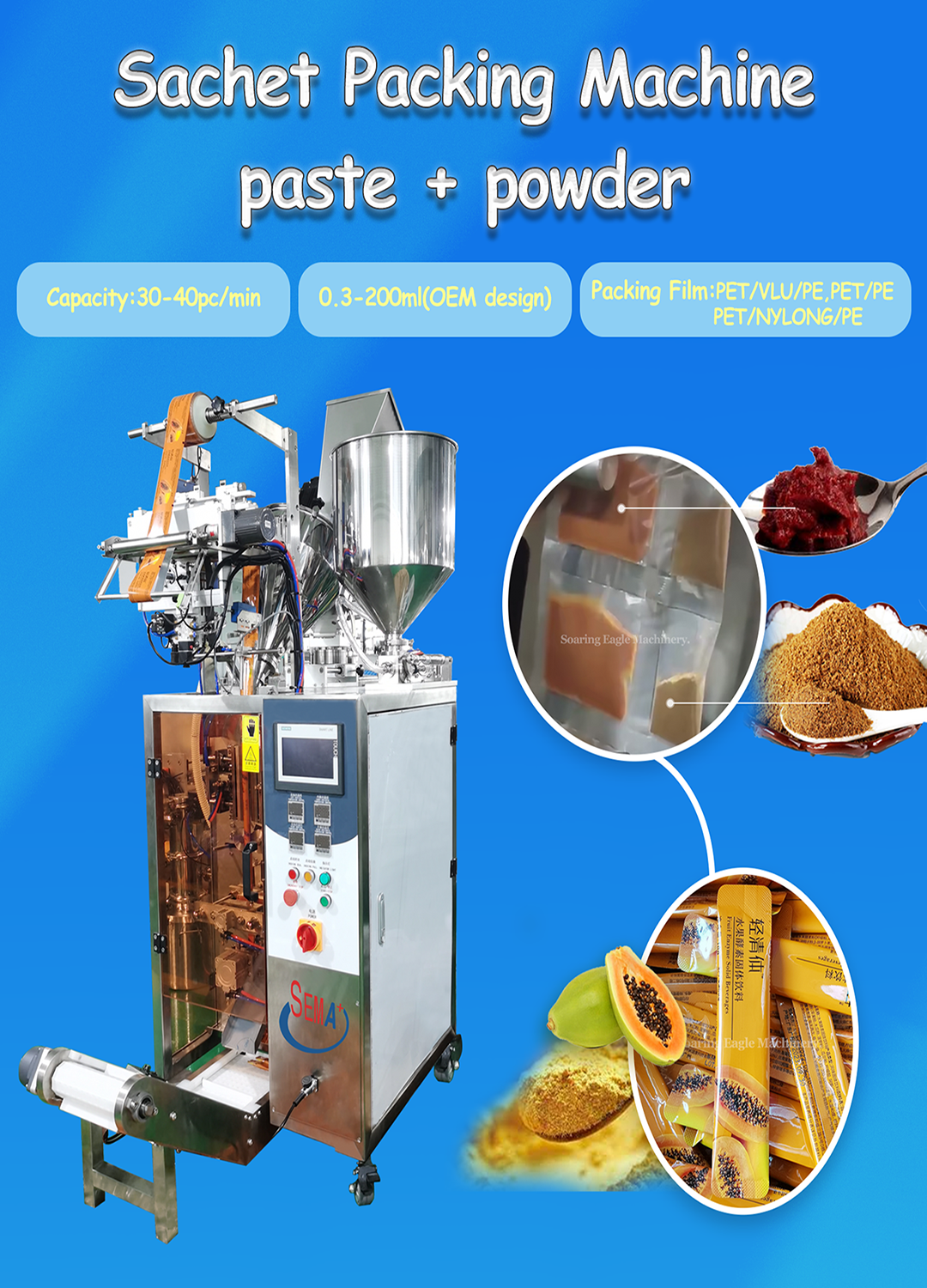

*1. High quality automatic sachet machine, different model machine for powder, granule, liquid ,cream packing.
*2. Automatic sachet bag forming ,product dosing and filling ,sealing, cutting
*3. Machine could install printer for date/batch No. printing and photocell sensor for pre-printed film packing, this is for choice ,according top customer requirements

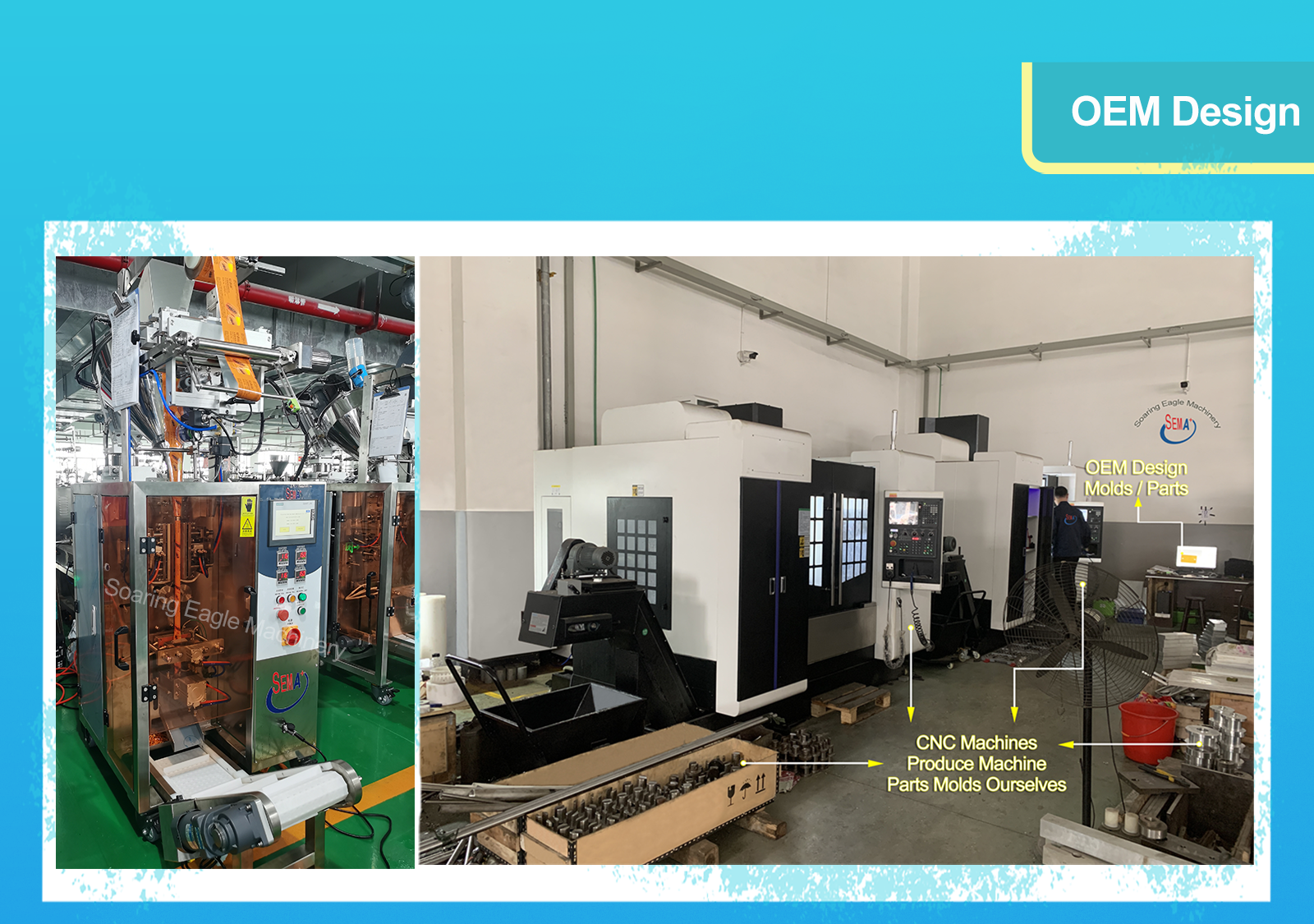

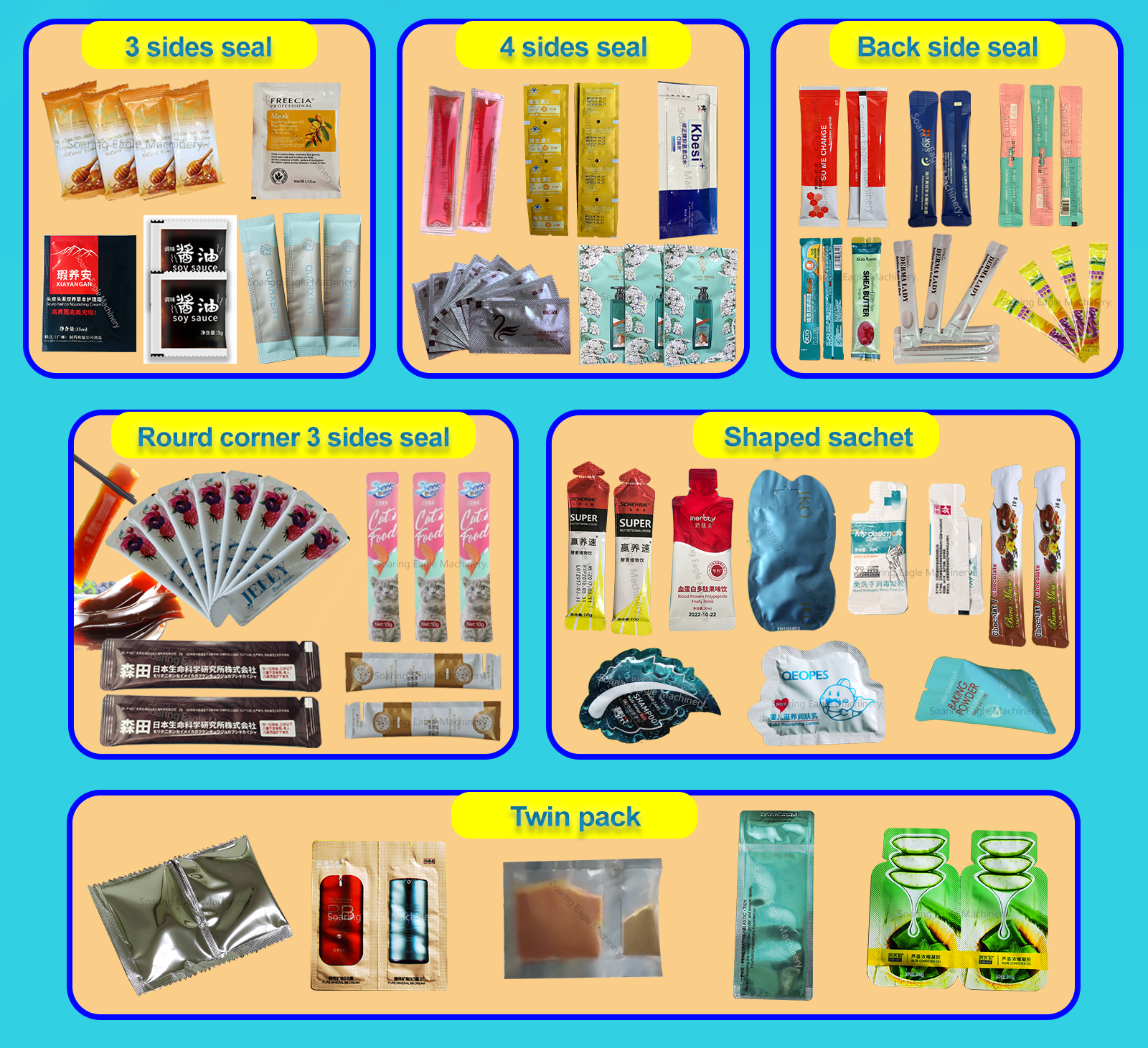

*4. OEM design the sachet type and size
Application:
This machine is suitable for the packaging of pharmaceutical, cosmetics, food, chemical products, such as olive oil /ketchup/honey/oral liquid, essential oil/eye cream/fertilizer and pesticide, etc.
Function:

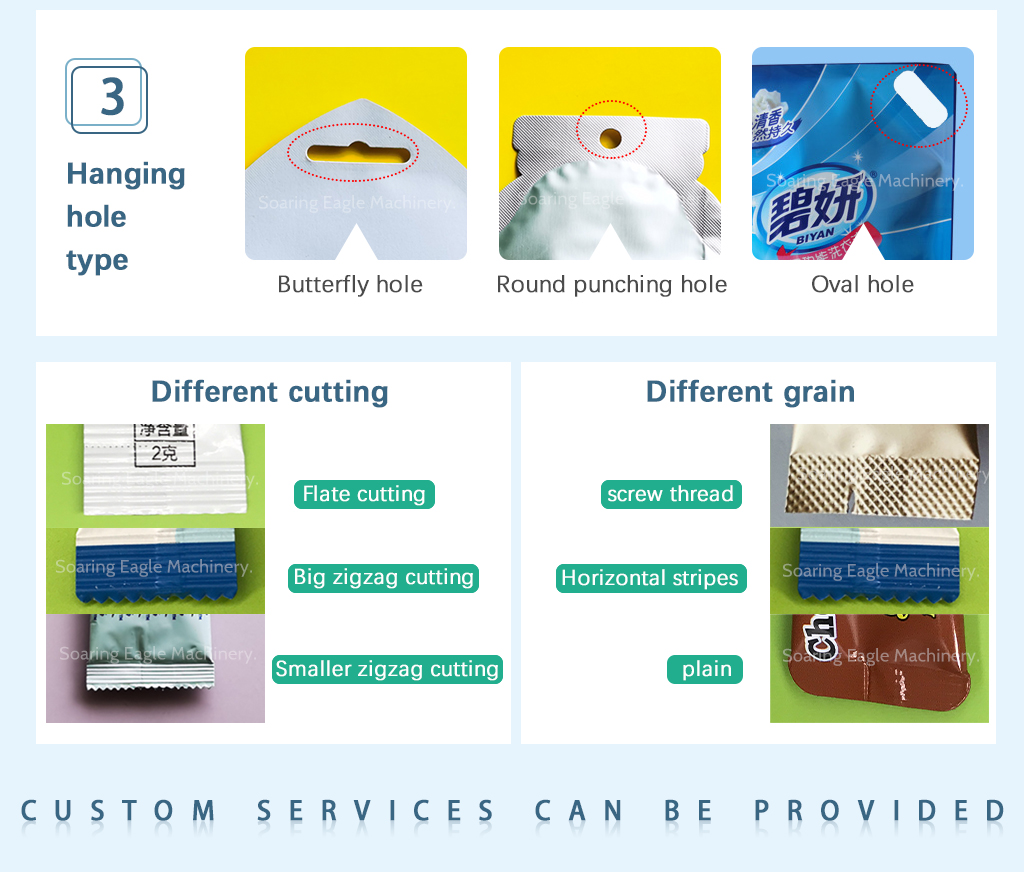

Automatic measurement of volume, bag making, filling, Sealing, cutting, cutting gaps that are easy to tear, etc.
Bag/film material:
Paper/Polyethylene Cellophane/Polyethylene; Alu/Polyethylene/Polyethylene Nylon/Polyethylene
Feature:

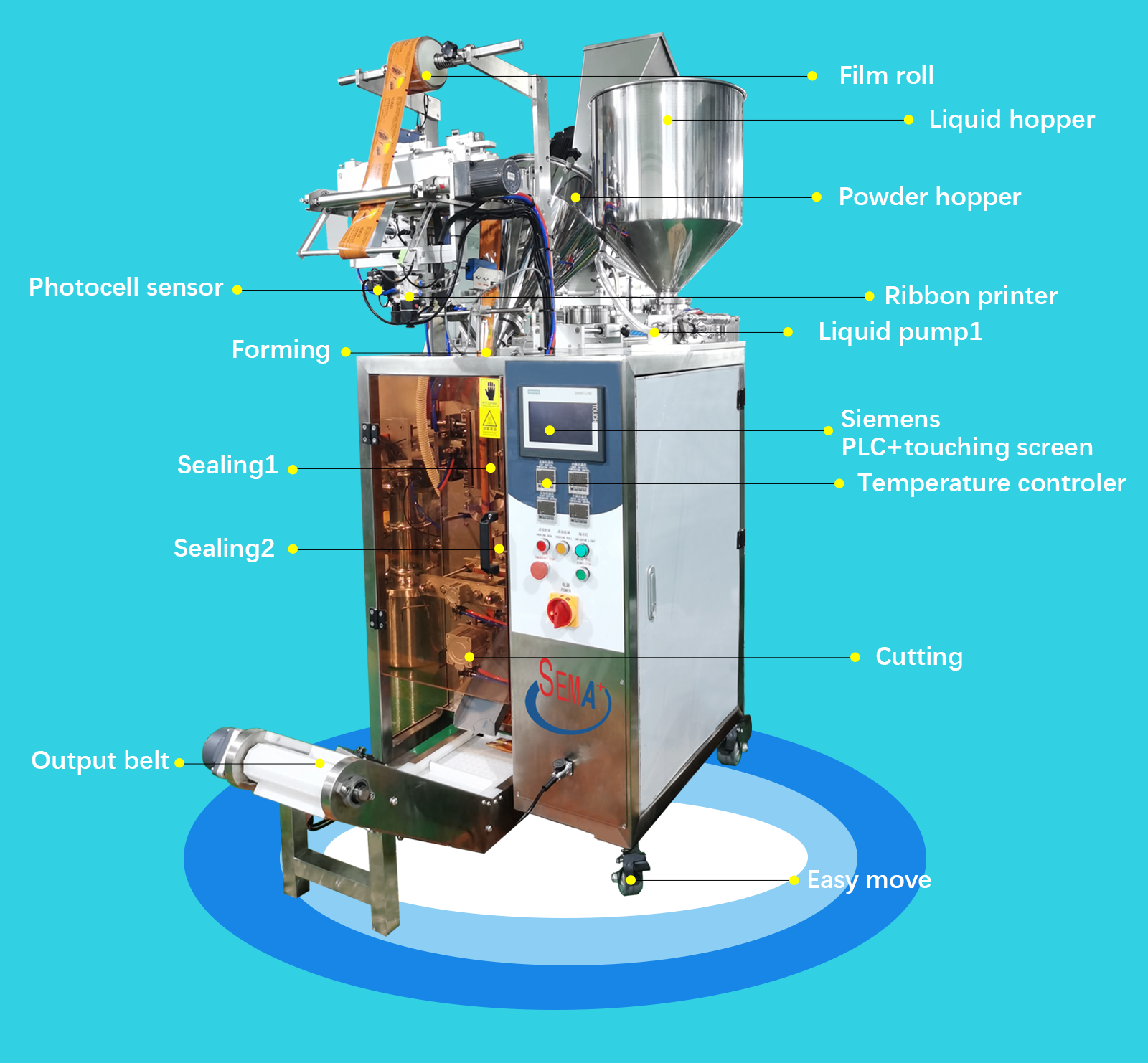

PLC control, touch screen English operation. PID temperature control. Power supply: According to the requirements of customers in various countries. Each machine has a CE certificate.
Machine No : | DXDL-100A |
Pouch Size : | L:50-150mm/W30-115mm |
Packing Speed : | 30-60bags/min |
Max Filling Range : | 50g |
Power Supply : | 220V,50HZ,1.9KW |
Machine Weight : | 350kgs |
Dimension L*W*H : | 700*800*1780mm |
