How Automatic high speed cartoning machine works?

Oct. 26, 2019

The automatic cartoning machine is a kind of packaging machinery, such as an automatic cartoning machine and a medicinal cartoning machine. The automatic high-speed cartoning machine automatically inserts the medicine bottle, the medicine board, the ointment into the folding carton, and completes the operation of the cover box. Some of the more automatic automatic cartoning machines also have a sealing label or heat shrinking. Additional features such as wrapping. The automatic high-speed cartoner feed is generally divided into three inlets: the instruction inlet, the vial inlet and the machine box inlet. The entire process from the feeding of the package to the final packaging can be roughly divided into four stages: the tray is fixed by a rail clamp and the tray is opened with a pusher, and there are two cards that can be moved forward. Raise below to catch the side of the carton from the front and rear direction, open the box at right angles and move forward to the loading area.

After filling in the loading area, the mechanism of the automatic high-speed cartoner folds the ear into the left and right guide rails and then performs the closing operation. The front mechanism of the cover will first bend the tongue of the paper box, and then a push plate pushes the cover to bend, so that the tongue is inserted into the box and the buckle is fastened. The capping action is a key action, and the quality of the carton has a lot to do with the structure of the carton and the accuracy of the automatic carton machine adjustment.

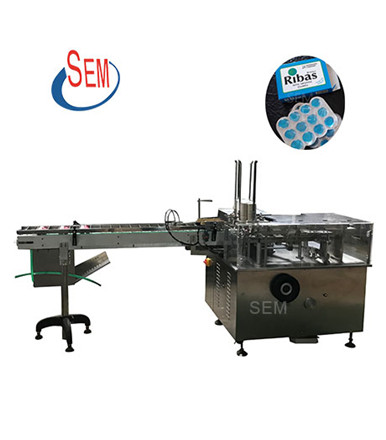

How Automatic high speed cartoning machine works?
